Solenoid Valve Symbol

Tip: Capital X Panel Designer offers all the solenoid valve symbols you need! Browse through the software’s selection of ready-made symbols, select the one you need for your electrical schematic drawing, and then simply drag and drop it into your design.

Sign up for the 30-day FREE Electrical Schematic Software trial and experience a boost in your workflow productivity!

Learn more about Capital X Panel Designer’s intelligent symbols now.

Show more

What is a Solenoid Valve?

A solenoid valve represents an electrically-actuated flow control device that regulates liquid or gas movement through electromagnetic actuation. The valve operates through an electromagnetic coil that generates magnetic forces to position an internal actuator, thereby controlling the valve's open or closed state. This electromagnetic operation enables automated and accurate flow management across diverse industrial and commercial applications.

What are the Types of Solenoid Valves?

  1. Direct-Action Solenoid Valves:

    • The electromagnetic coil's magnetic field acts immediately on the valve's movable elements (such as the actuator or core assembly) to control valve positioning.
    • Best suited for applications with modest pressure requirements and limited flow volumes, offering rapid actuation response.
    • Simple design provides fast switching capabilities.
  2. Pilot-Assisted (Servo-Operated) Solenoid Valves:

    • These systems leverage the controlled medium's own pressure (liquid, gas, or steam) to operate the primary valve mechanism.
    • The electromagnetic actuator manages a smaller auxiliary valve that channels system pressure to control the main flow path.
    • Designed for demanding applications requiring high-pressure handling and substantial flow capacity.
    • The pilot mechanism amplifies the solenoid's force through fluid pressure assistance.

What is a Solenoid Valve Symbol?

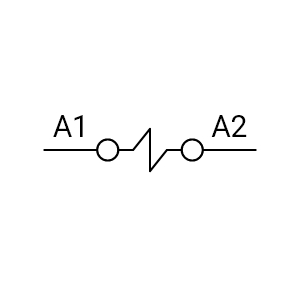

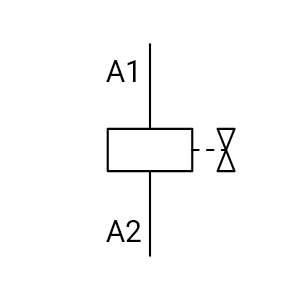

A solenoid valve symbol is a graphical representation of the device, used by engineers and technicians to quickly identify its location within an electrical system without requiring a physical examination.

It may be drawn as a rectangle with input and output lines coming out of it, representing the flow of the current used to operate the valve.

Skip Drawing Solenoid Valve Symbols With Capital X Panel Designer!

Drawing a solenoid valve symbol manually is a time-consuming process. With Capital X Panel Designer, you can skip this tedium by simply browsing through our library of pre-made symbols and dragging and dropping them into your schematic. With this easy-to-use CAD software, you’ll witness a huge boost to your workflow productivity in no time!

Need to create your own symbols? Learn more about how to create custom electrical symbols.
